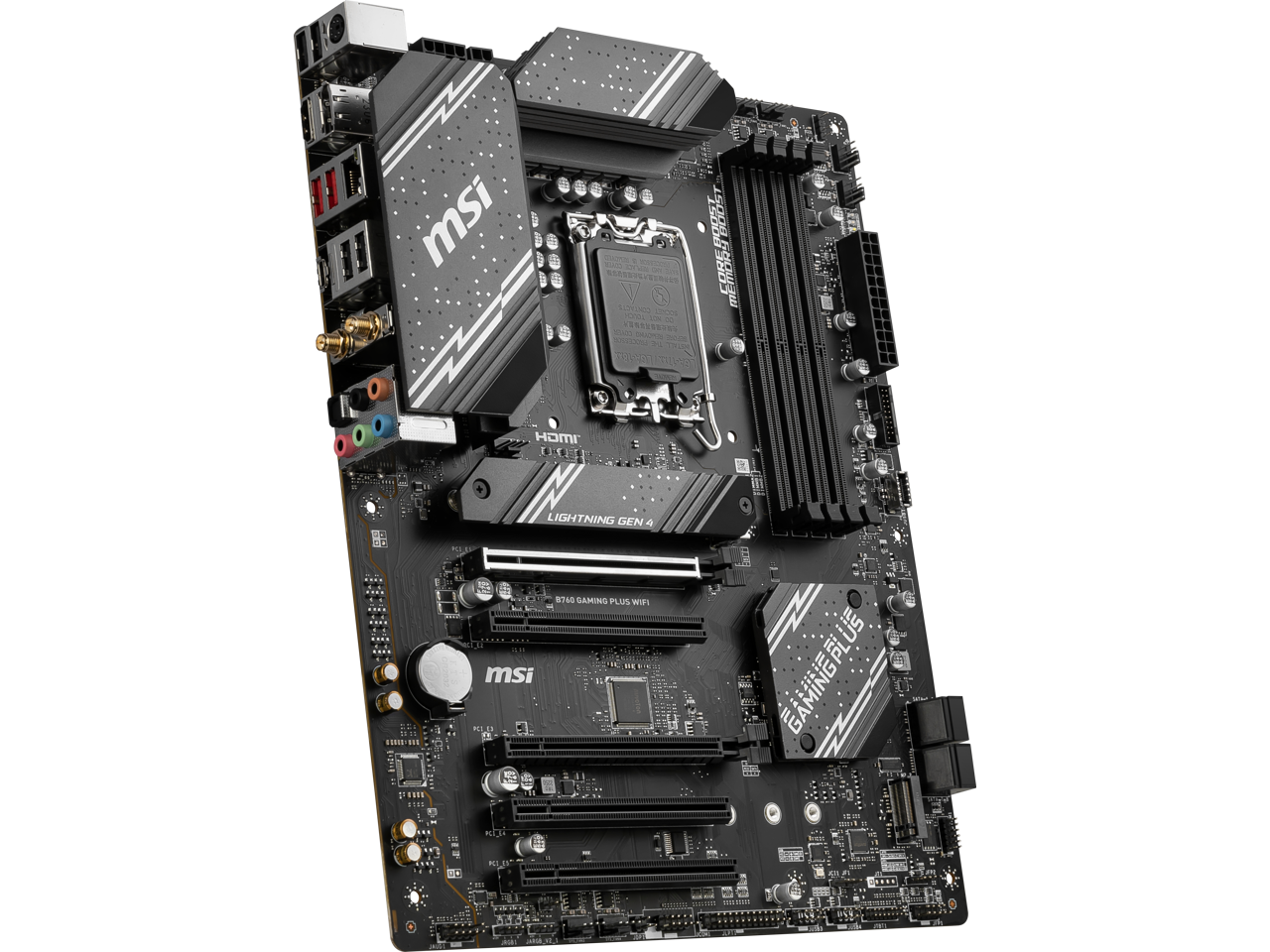

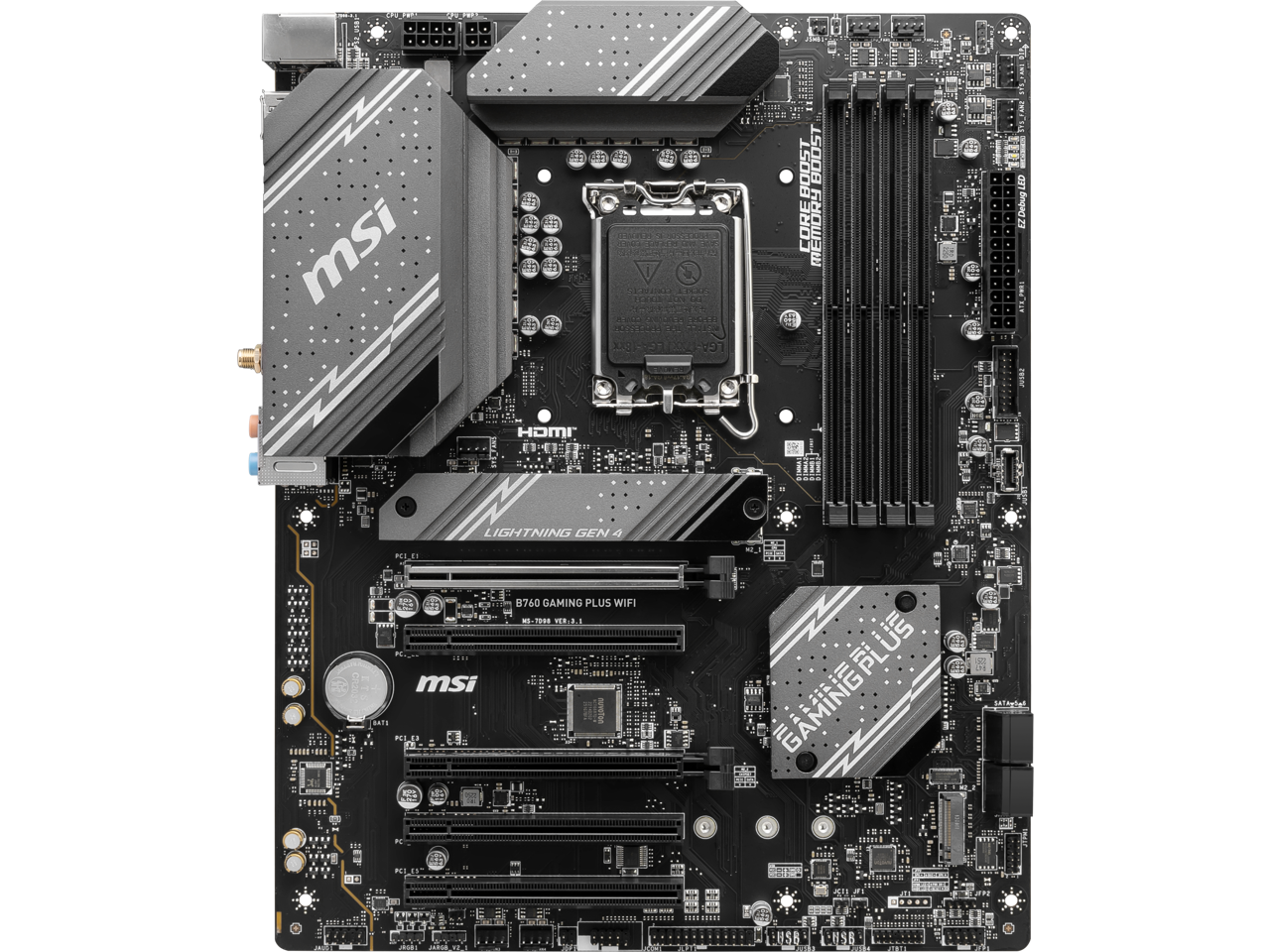

MSI B760 GAMING PLUS WIFI LGA 1700 Motherboard - Open Box

MSI B760 GAMING PLUS WIFI LGA 1700 Motherboard - Open Box

$199.99
$199.99
Sale Sold out

    Open Box Product - Tested 100% Working

    Refund or Exchange within 14 Days - Afterwards Final Sale

    Model
    Brand MSI
    Model B760 GAMING PLUS WIFI
    Supported CPU
    CPU Socket Type  LGA 1700
    CPU Type Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    Chipsets
    Chipset  Intel B760
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6800+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Maximum Memory Supported 192GB
    Channel Supported  Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 2 x PCI Express 4.0 x16
    PCI Express x1 3x PCIe 3.0 x1 slot
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Onboard Audio
    Audio Channels  8-Channel (7.1) HD Audio with Audio Boost
    Onboard LAN
    Max LAN Speed Realtek®
    RTL8125BG 2.5G LAN
    Wireless LAN ntel®
    Wi-Fi 6E
    Bluetooth , Bluetooth 5.3
    Rear Panel Ports

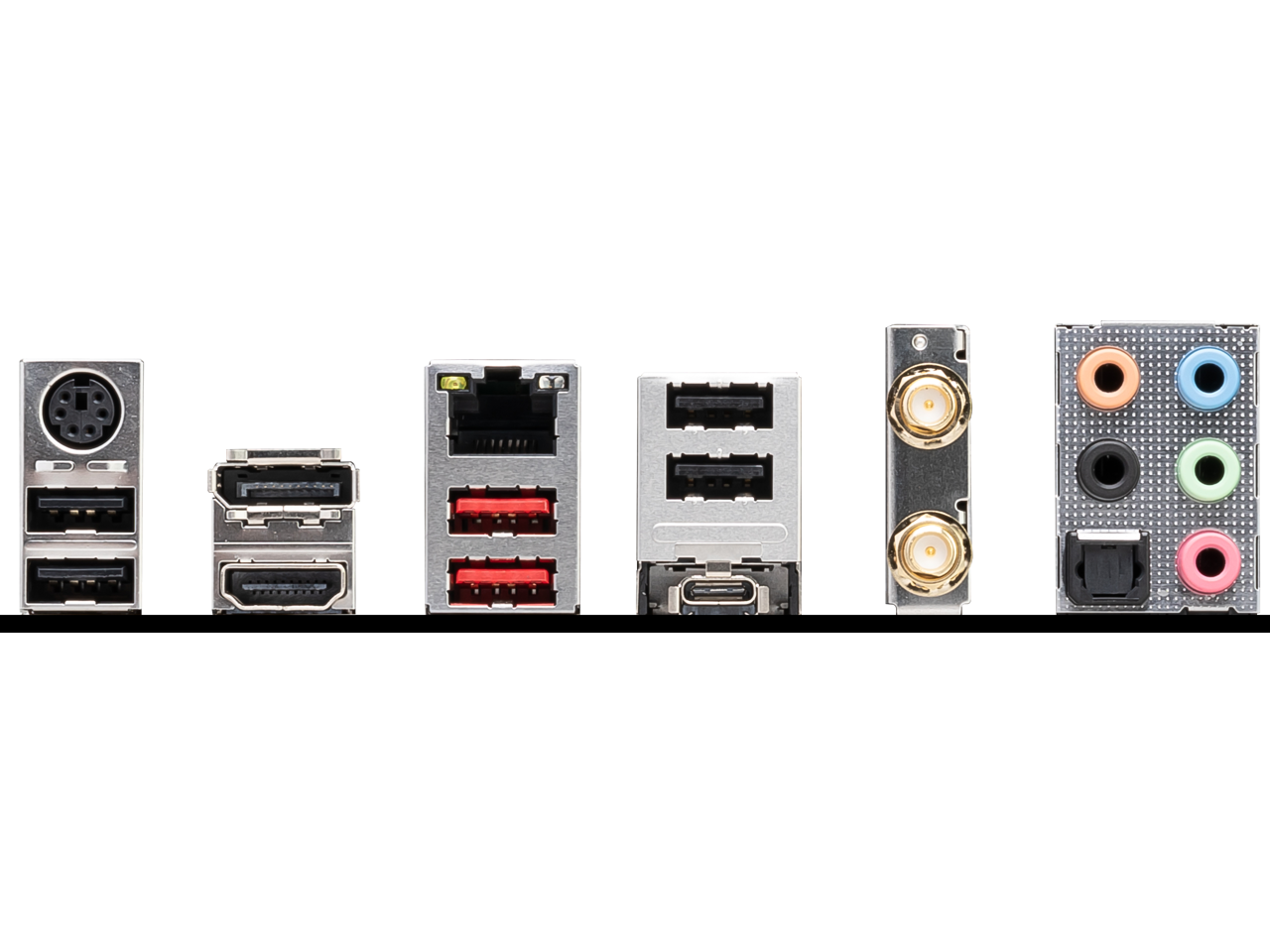

    Back I/O Ports Keyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out.
    Internal I/O Connectors
    Other Connectors 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x TBT connector (JTBT, supports RTD3)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 243.84mmx304.8mm
    Windows Compatibility
    Windows 11 Support for Windows® 11 64-bit, Windows® 10 64-bit
    Features
    Features Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
    Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
    Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
    Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
    2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    High Quality PCB: 6-layer PCB made by 2oz thickened copper
    Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
