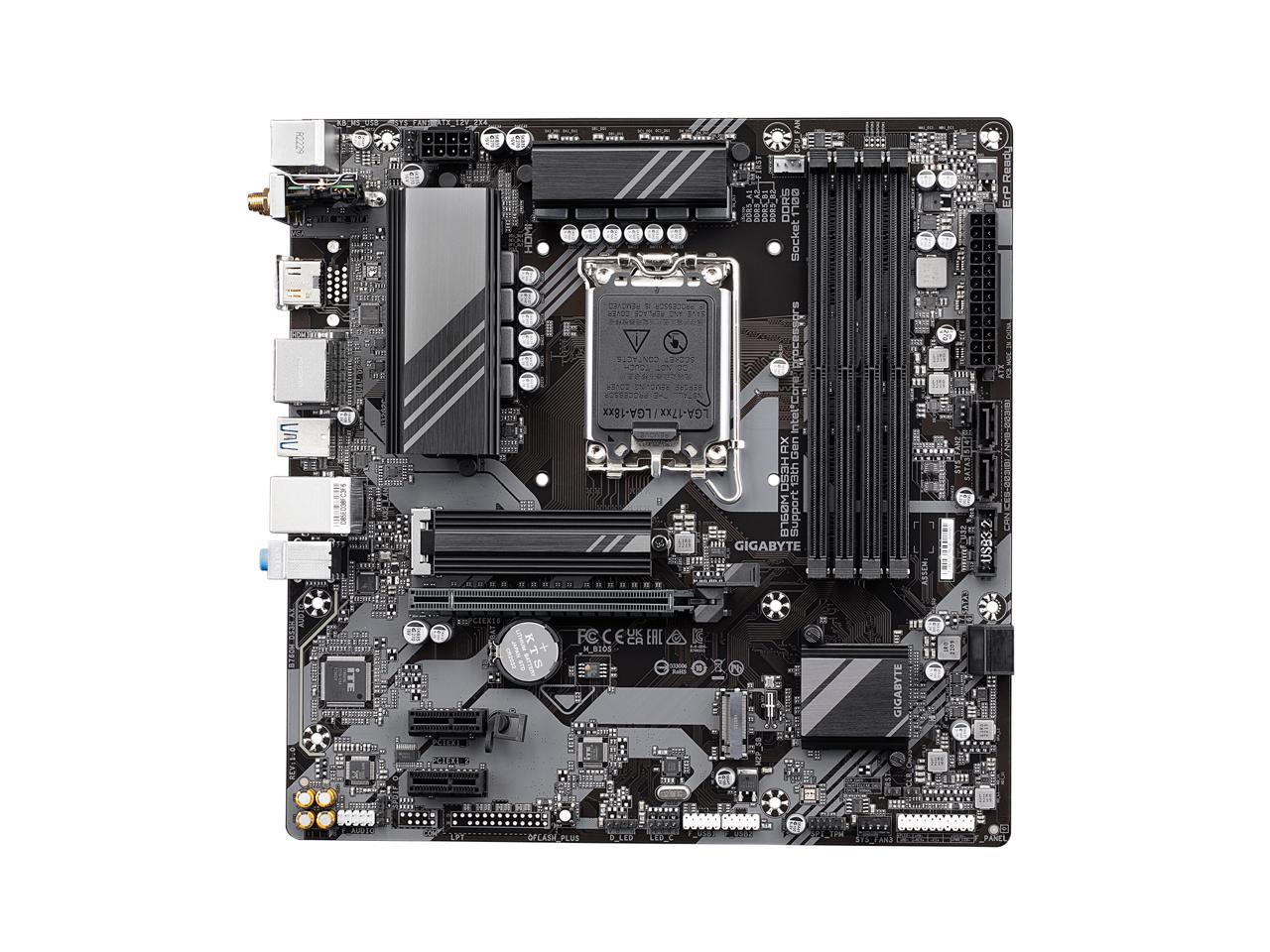

GIGABYTE B760M DS3H AX LGA 1700 Motherboard - Brand New

GIGABYTE B760M DS3H AX LGA 1700 Motherboard - Brand New

Regular price $229.99
Regular price Sale price $229.99
Sale Sold out

    Open Box Product - Tested 100% Working

    Refund or Exchange within 14 Days - Afterwards Final Sale

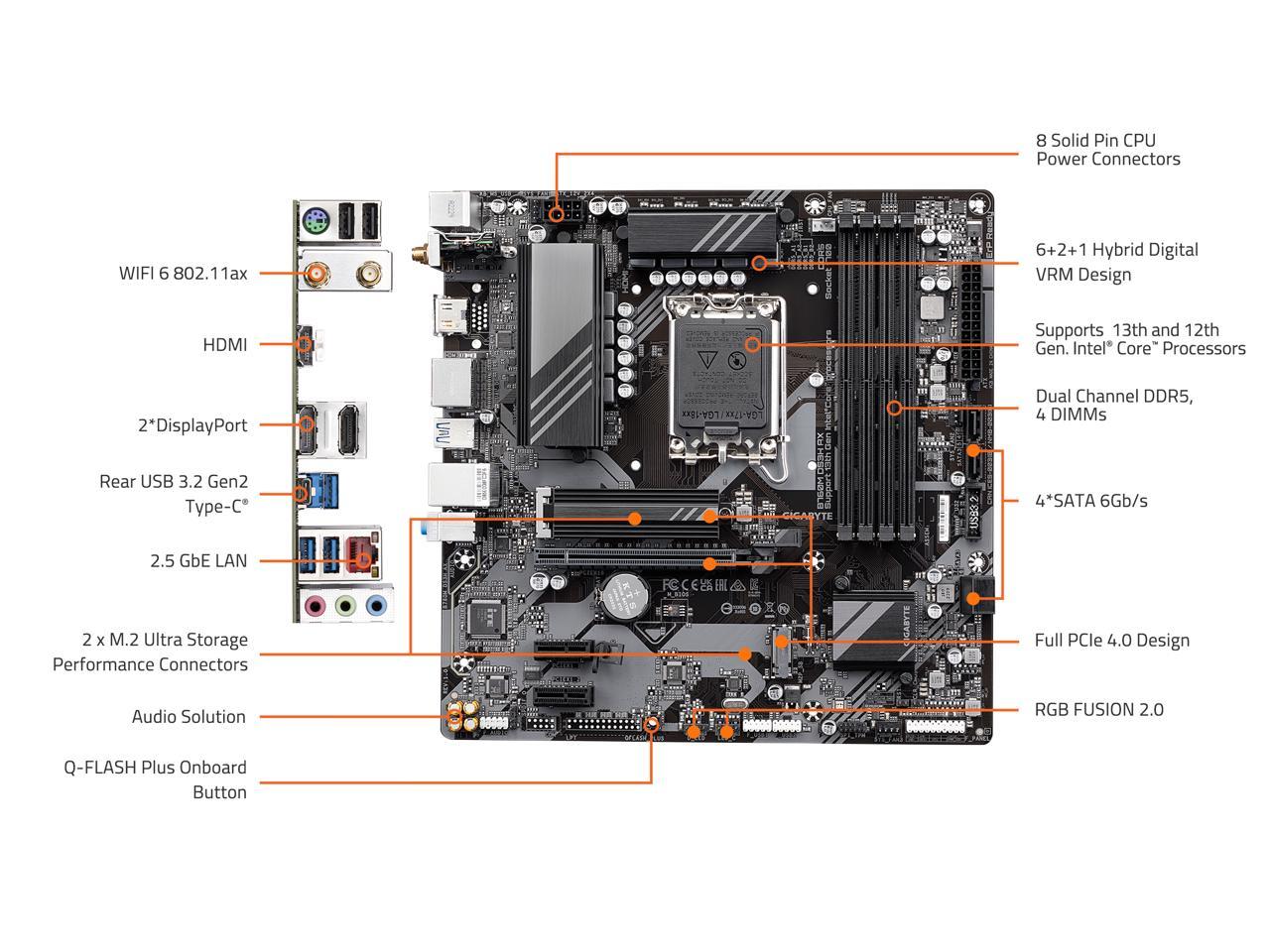

    Model
    Brand GIGABYTE
    Model B760M DS3H AX
    Supported CPU
    CPU Socket Type  LGA 1700
    CPU Type Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    Chipsets
    Chipset  Intel B760
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    Maximum Memory Supported 128GB
    Channel Supported  Dual Channel
    Memory Feature 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 CPU:
    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset  Realtek Audio CODEC
    High Definition Audio
    Audio Channels  2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Onboard LAN
    LAN Chipset Realtek 2.5GbE LAN chip
    Max LAN Speed 2.5Gbps
    Wireless LAN Wi-Fi 6E
    Bluetooth Yes

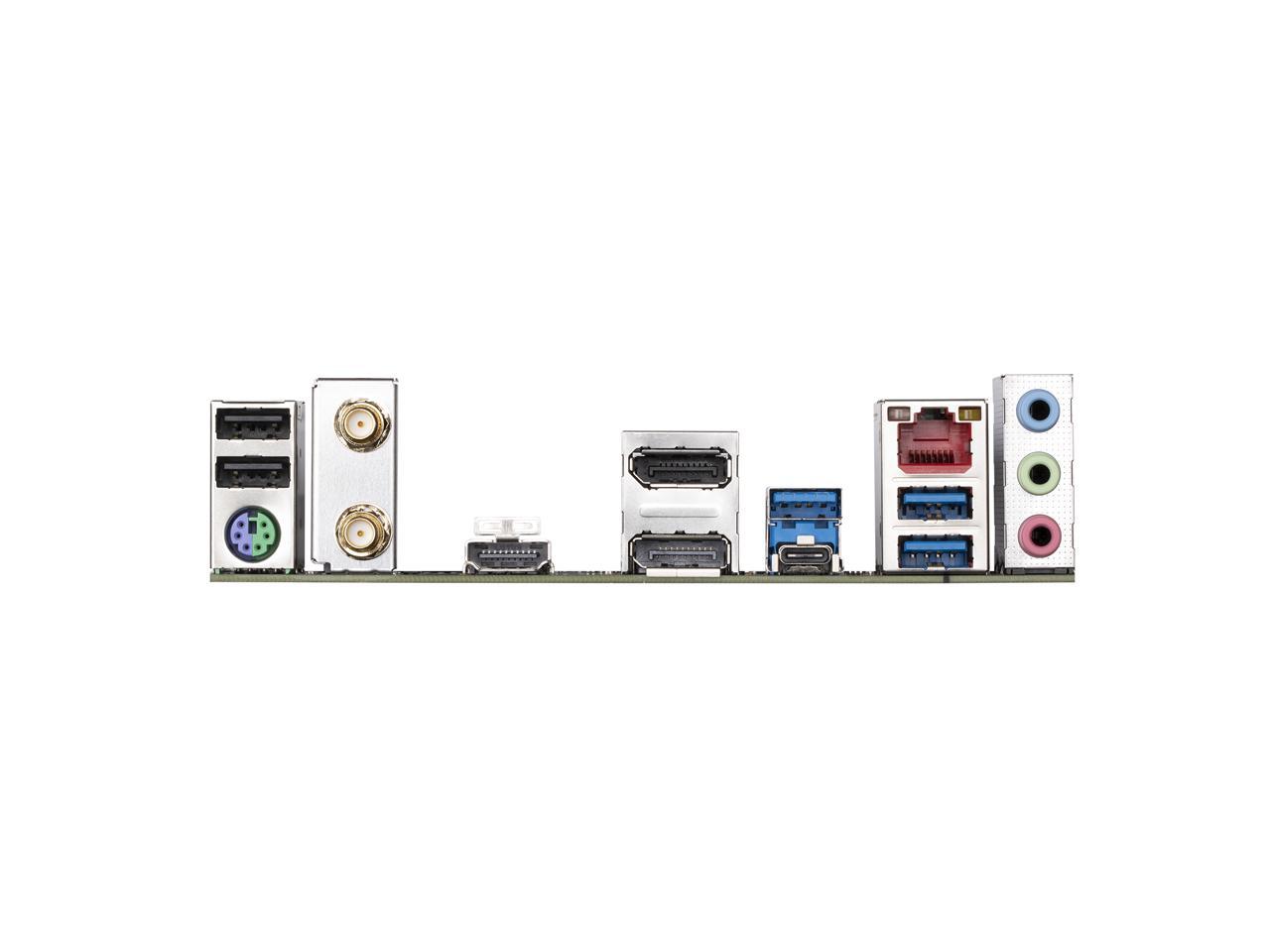

    Rear Panel Ports
    Back I/O Ports 2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    2 x DisplayPorts
    3 x USB 3.2 Gen 1 ports
    1 x USB Type-C port, with USB 3.2 Gen 2 support
    1 x RJ-45 port
    3 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 24.4cm x 24.4cm
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Windows Compatibility
    Windows 11 Supported
    Features
    Features Unique Features:
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus

    BIOS:
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
