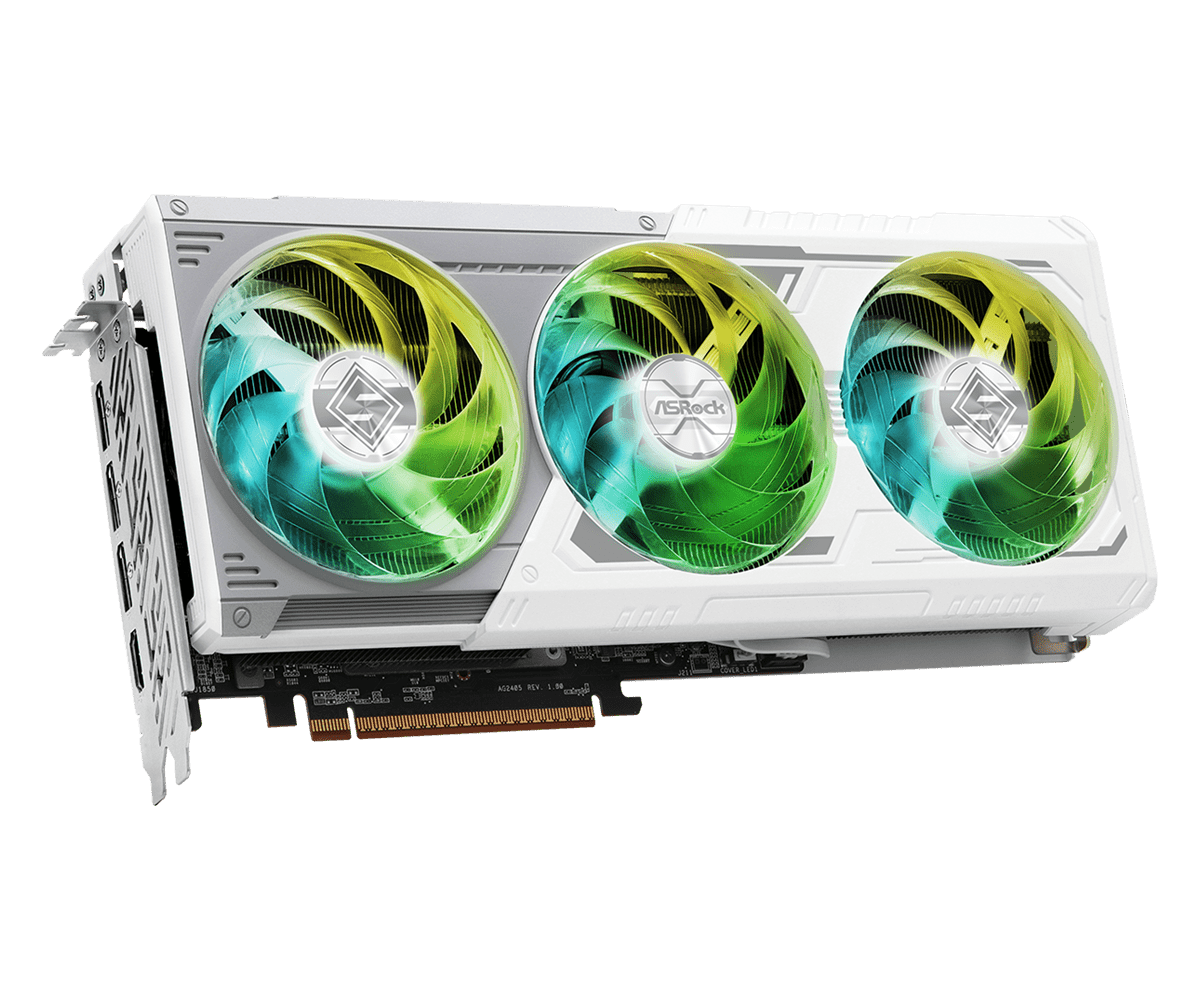

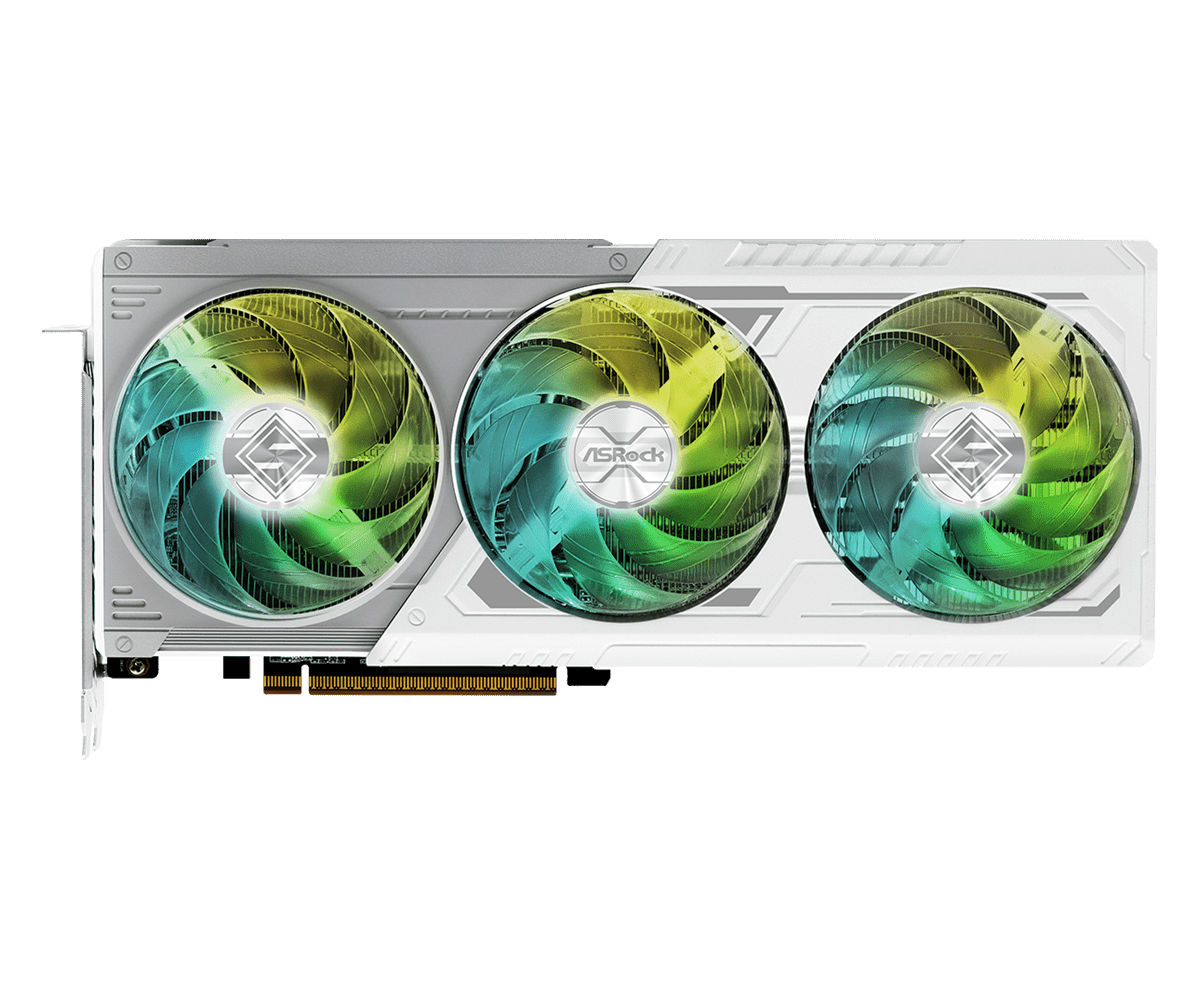

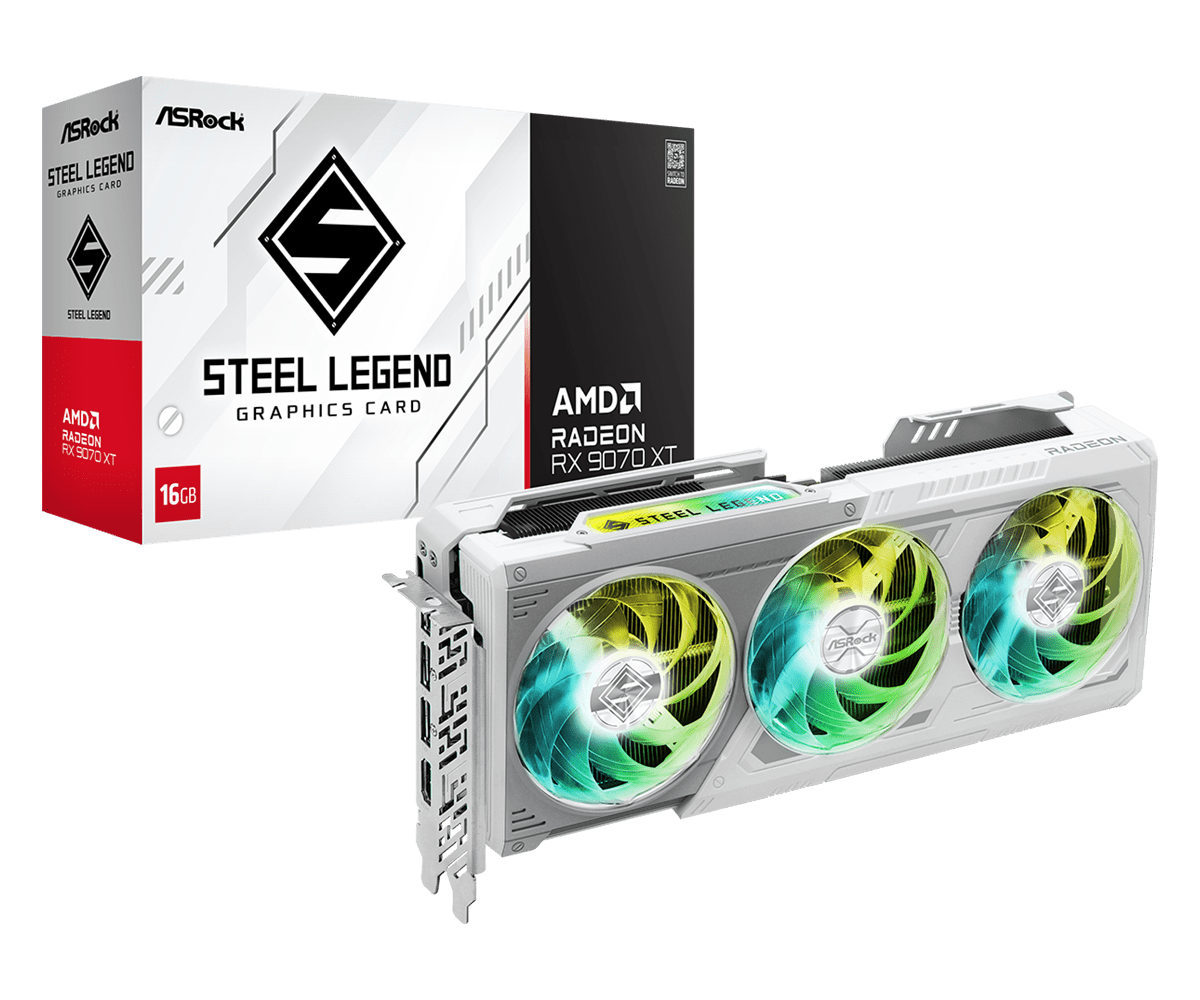

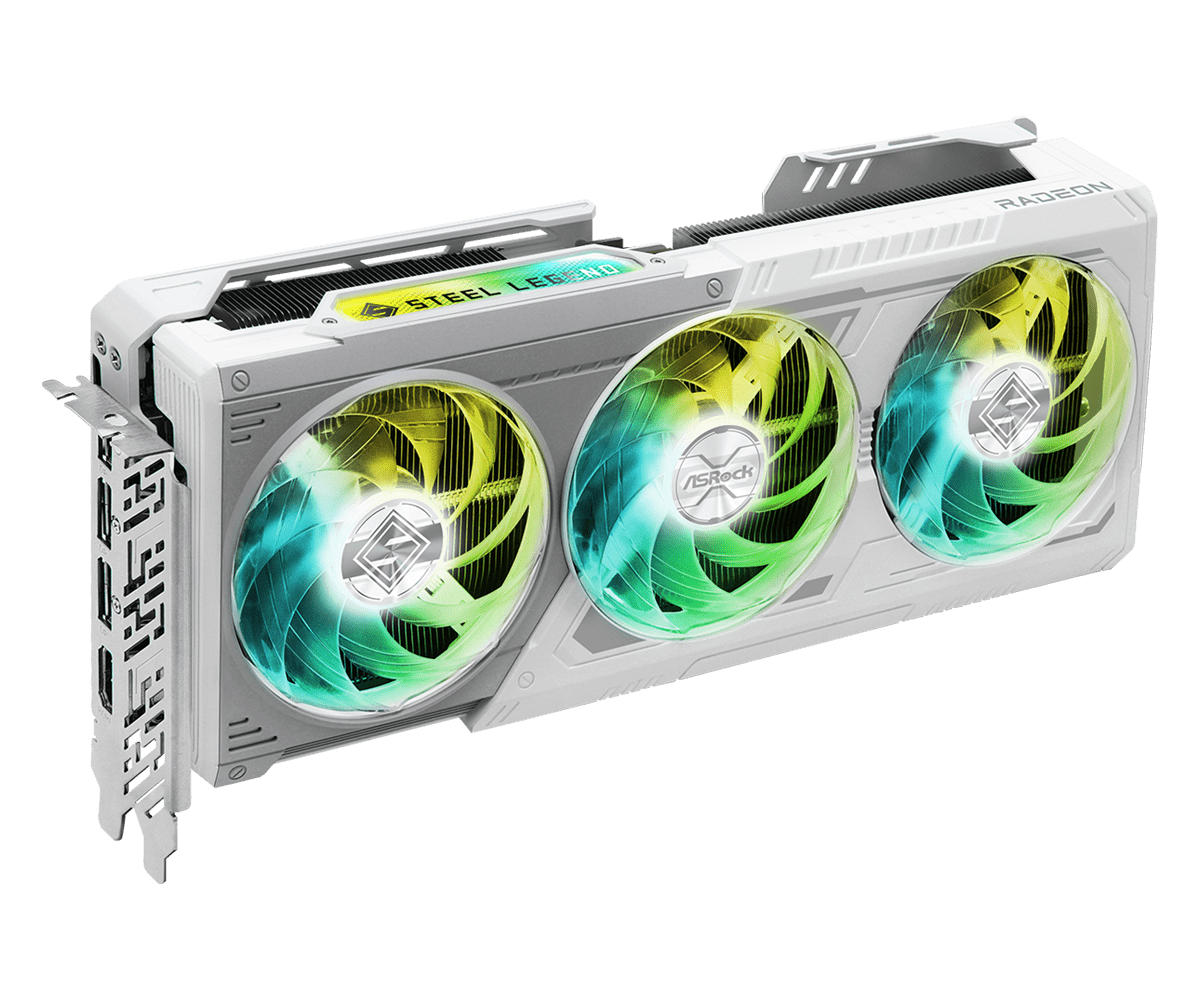

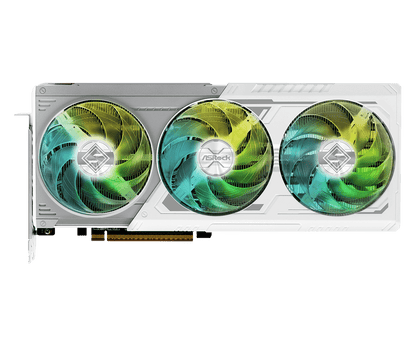

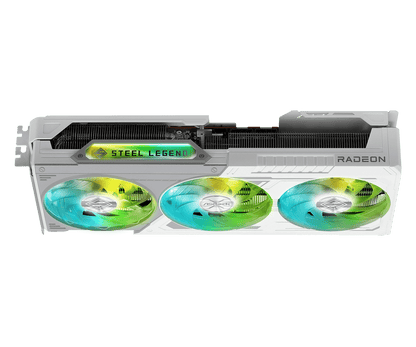

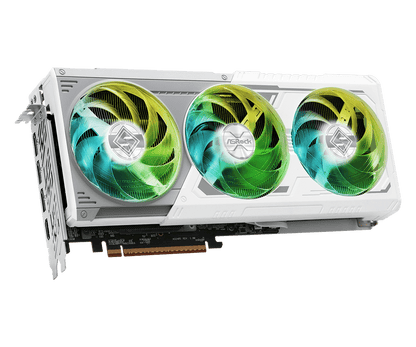

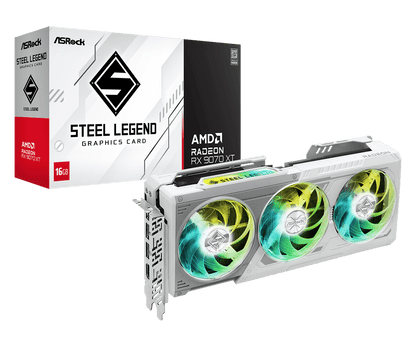

High-performance RDNA 4 graphics in a premium white Steel Legend design. The ASRock Radeon RX 9070 XT Steel Legend 16GB delivers powerful 1440p and strong 4K gaming performance with triple-fan cooling, 16GB of GDDR6 memory, and modern display connectivity.
Key Features
GPU: AMD Radeon RX 9070 XT based on RDNA 4 architecture.
Memory: 16GB GDDR6 on a 256-bit bus at 20 Gbps effective.
Clock Speeds: Game Clock around 2400 MHz, Boost Clock up to 2970 MHz (varies slightly by model).

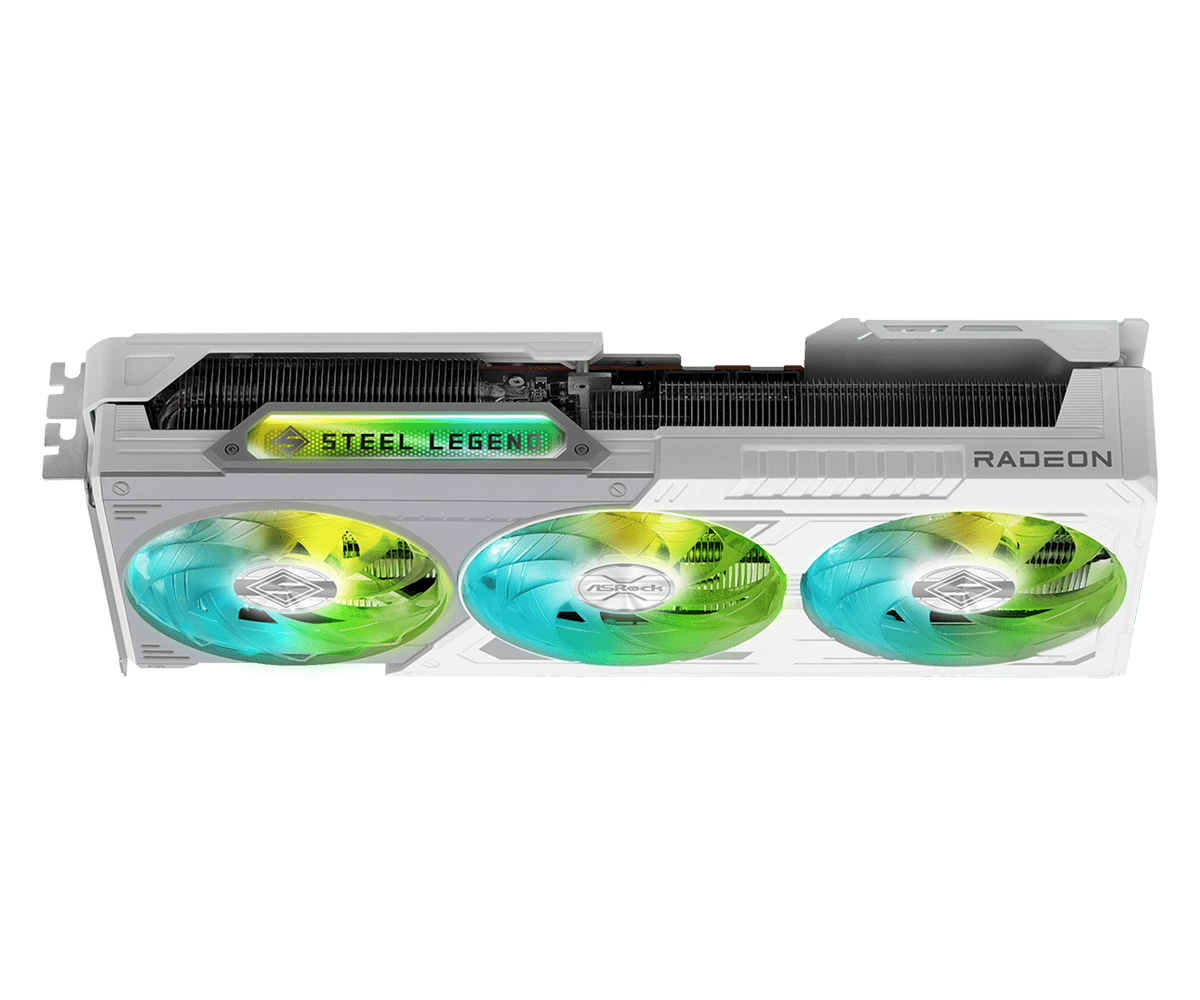

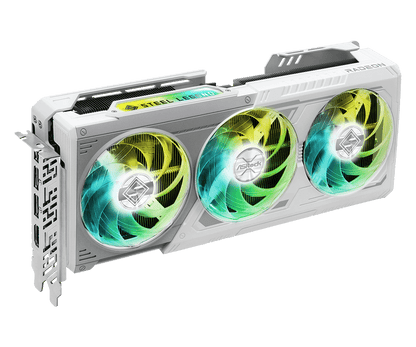

Cooling: Triple-fan cooler with striped ring fans, air-deflecting fins, and 0dB fan stop at low loads.

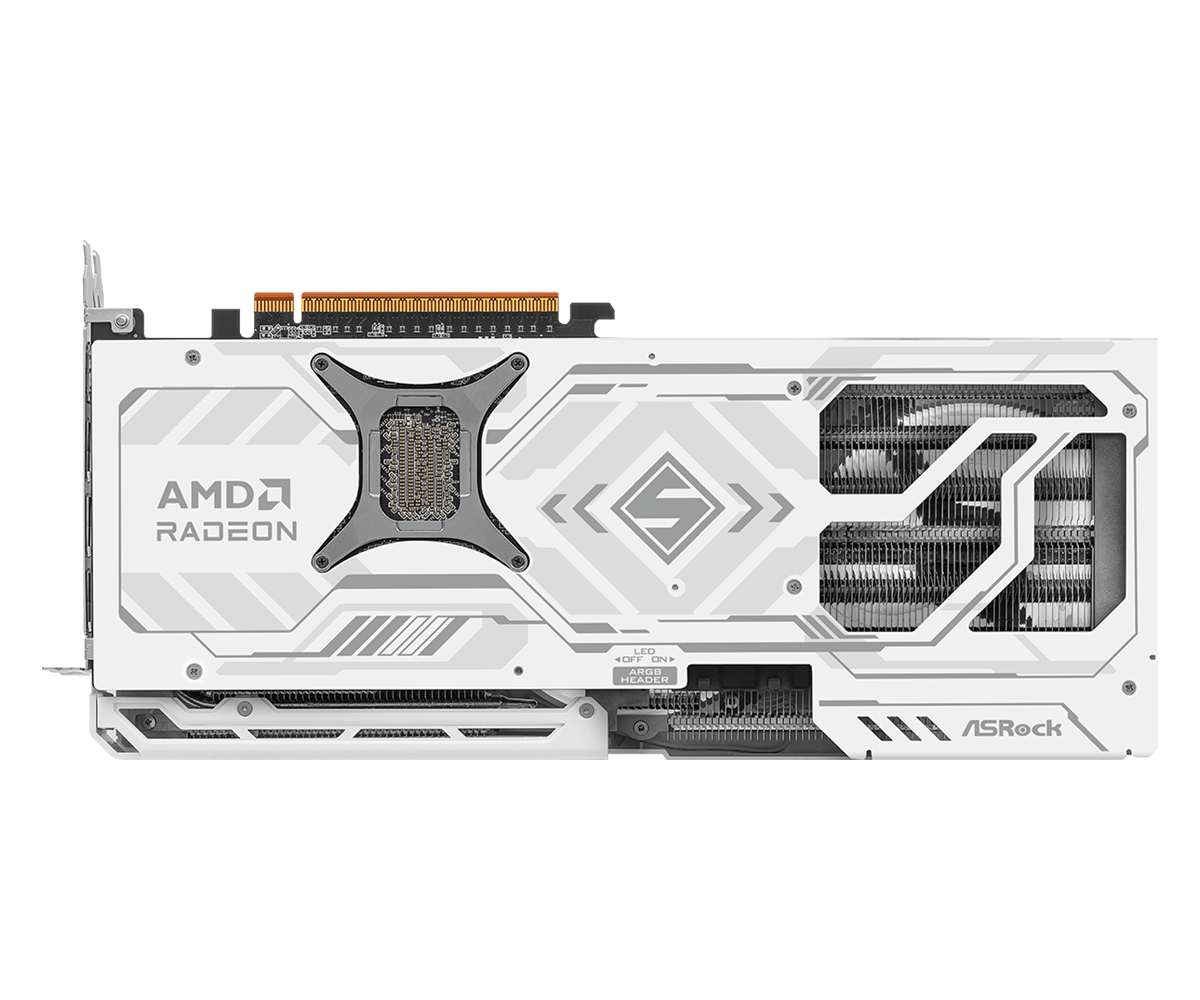

Design: White Steel Legend shroud with metal backplate, reinforced frame, and RGB lighting with Polychrome SYNC support.
Performance Specifications
Stream Processors: 4096.
Game Clock: ~2400 MHz.
Boost Clock: Up to 2970 MHz.
Memory Size: 16GB GDDR6.
Memory Speed: 20 Gbps.
Memory Interface: 256-bit.
Max Resolution: 7680 x 4320 (8K).
Technical Specifications
Interface: PCI Express 5.0 x16.
Outputs: 1 x HDMI 2.1b, 3 x DisplayPort 2.1a.
Multi-Monitor Support: Up to 4 displays.
Typical Board Power: Around 300–305W.
Recommended PSU: 800W.
Power Connectors: 2 x 8-pin PCIe.
Card Dimensions: Approx. 298 x 131 x 58 mm, ~2.9-slot design.
APIs: DirectX 12 Ultimate, OpenGL 4.6.
Perfect For
High-refresh 1440p gaming and capable 4K gaming.
White-themed or RGB-synced builds using Polychrome SYNC.
Multi-monitor and high-resolution productivity or creator setups.
Style, cooling, and next-gen performance. The ASRock Steel Legend RX 9070 XT 16GB pairs strong RDNA 4 performance with a premium triple-fan cooler and white aesthetic, ideal for modern gaming and creator PCs.
